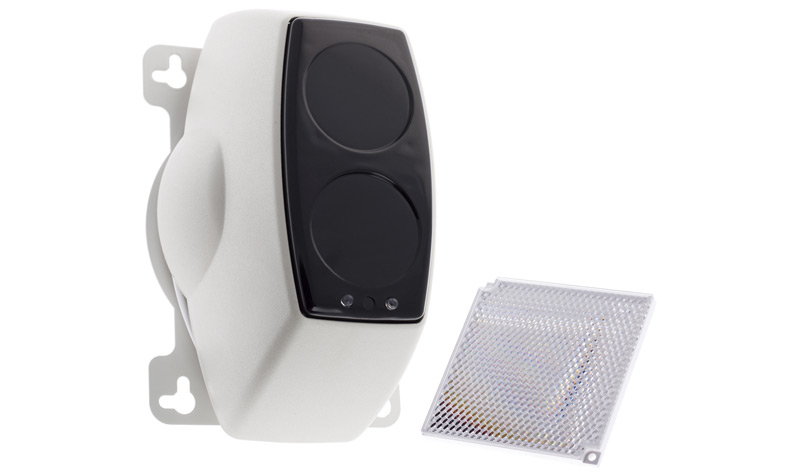

The Fireray® 50R/100R series of reflective infrared optical beam smoke detectors are comprised of a single unit incorporating an infrared Transmitter and Receiver. The signal is reflected by a prism and analysed for smoke presence. The system is designed to be mounted so that the beam will project between 0.3 and 0.6 metres below and parallel to the ceiling. Lateral detection may be up to 7.5 metres either side of the beam.
Key Benefits
- Single Compact Housing
- Area coverage 50 metre or 100 metre model available
- 12-24 Vdc Operation
- Low current Consumption
- Robust Construction
- Conforms to: BS5839 Part 5 and EN54 part 12, UL and VdS
Applications
The Fireray® 50R/100R series of reflective infrared optical beam smoke detectors provide economical and effective protection of large, open plan spaces with high ceilings, particularly if access to ‘point type’ smoke detectors presents practical difficulties.
Related products:
Fireray® 5000
Auto-aligning Optical Beam Smoke Detector
Fireray® 3000
End to End Infrared Optical Beam Smoke Detector
Datasheets
User Guides
Other Documents
Approvals
Training Modules
Accessories
Fireray 50/100R Reflective Beam Smoke Detector Installation Video
